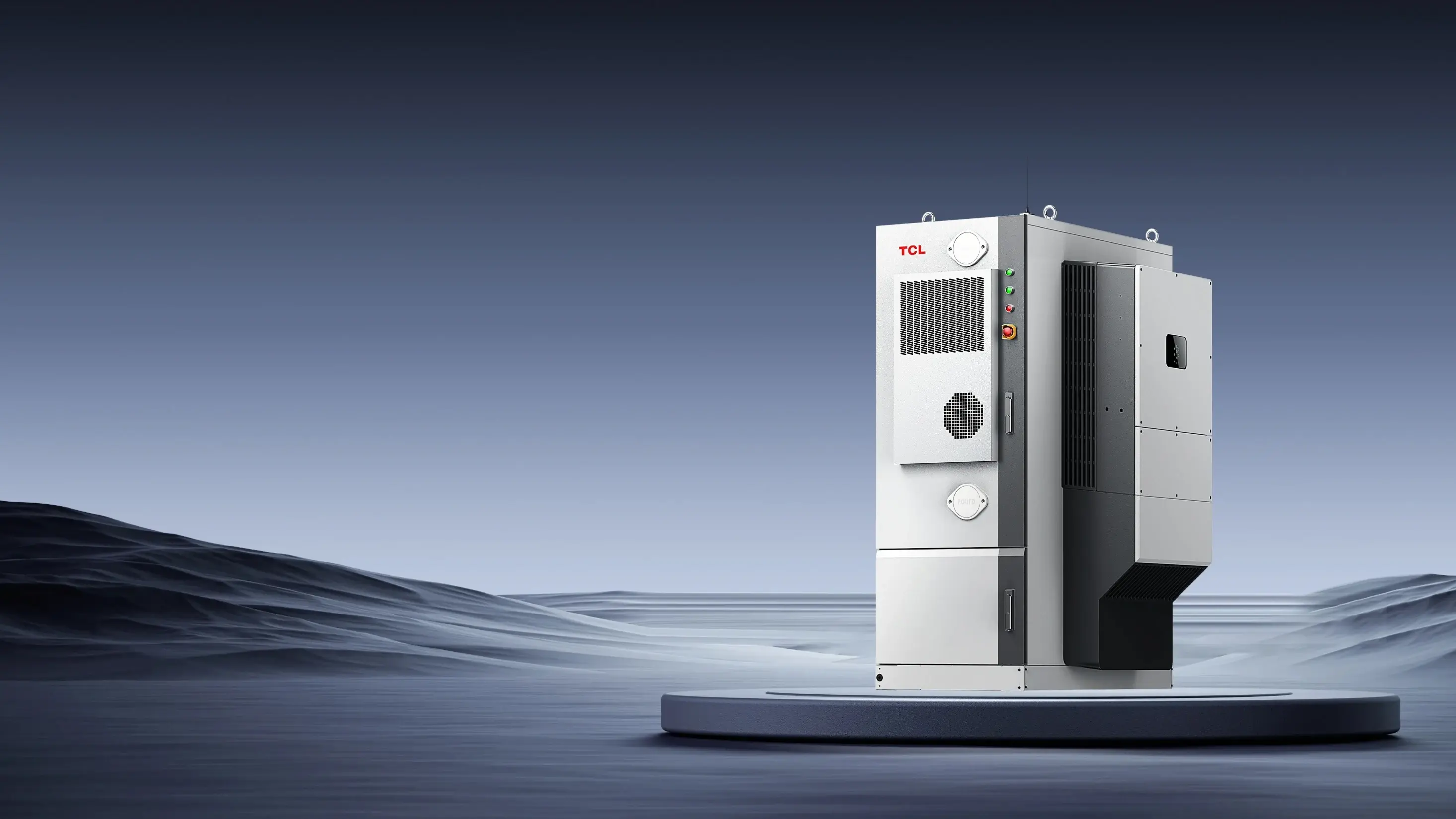

TCL X5 storage
Small Commercial Battery system
Small footprint. Serious power.
The X5 addresses a specific market need: sites too small to justify a custom-engineered battery system, but too demanding for a residential-scale solution. It comes with the 50kW hybrid inverter factory-assembled and pre-wired inside the cabinet - reducing installation complexity and risk, and minimizing on-site work.
It flexes easily to accommodate a wide range of applications, supporting on-grid, off-grid, and microgrid operation, with islanding in less than 20 milliseconds and black-start capability without any grid or PV connection. The system also accepts generator input up to 138 kVA.
With the rapidly deployable X5, we turn power anxiety into operational confidence. Reliable energy, simplified.
Why the TCL X5 for your next project
The inverter is inside
Hybrid inverter, battery and transfer switch in one preassembled cabinet. One enclosure to place on 1.35 m² of floor space. Less time on site, less wiring and less disruption for your customer's site.
Keeps running off-grid
138 kVA generator input and black start with no grid and no PV, built in. Under 20 ms switchover keeps critical loads running through an outage, with grid, solar, generator and battery working as one.
Support in your country
Technical support in seven European countries and five languages, plus remote support for your first X5 installs. Commissioning and warranty questions handled in your market, by people in your market.
Backed by TCL
TCL has traded in Europe since 2008 and runs six local entities in 15+ markets. X5 is the first of a full TCL C&I storage range, from the same group that makes your solar panels and energy management.

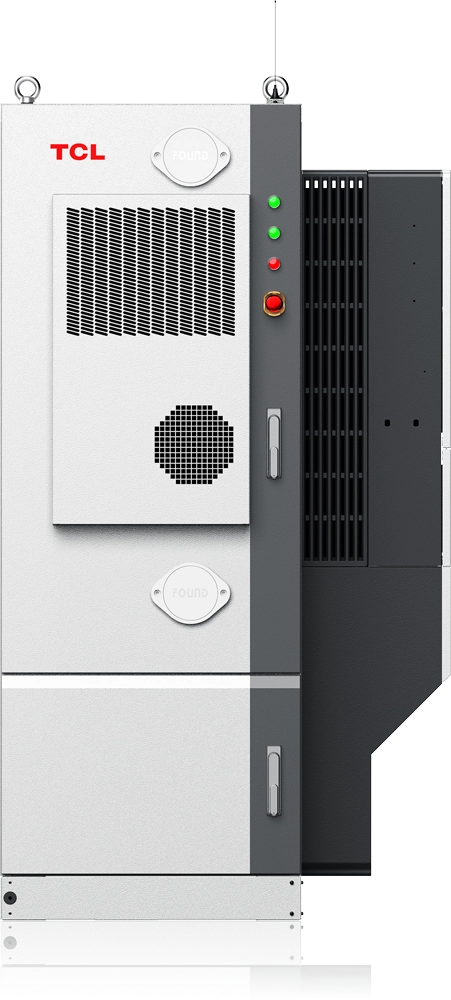

Commercial and industrial all-in-one energy storage
Integrated design and flexible installation
- LFP 314Ah cells: more stable system, higher energy density
- Plug-and-play all-in-one design, quick deployment with factory pre-integration
- A single cabinet supports expansion from 2h to 8h (50kW/400kWh)
Versatile energy and grid-free capability
- 6 MPPT channels, 200% PV input
- Multi-energy integration for diverse applications
- Seamless on/off-grid switching under 20ms, uninterrupted power for critical loads
Enhanced safety and multiple protection
- IP55 rating, C3/C4 corrosion resistance for extreme environments
- Cooling system in the battery compartment ensures stability and longevity
- Fire and aerosol integration with combustible gas detection and gel fire suppression
Smart operation and cost efficiency
- Remote OTA for automatic optimisation of features and performance
- Intelligent monitoring: remote diagnostics, visual status, alerts and analysis
- Compatible EMS for unified management across multiple sites, reducing operational costs
Beyond Daylight Hours: How Storage Is Changing Off-Grid Solar Water Pumping
See how EUFON used the TCL X5 50 kW/100 kWh battery to upgrade off-grid solar pumping for a 2,500-sow farm in Burgos, Spain.
50 kW / 100 kWh
TCL X5 system
34.56 kWp
existing solar array retained
0
additional panels required
0
generator starts during the 1-3 September monitoring period
